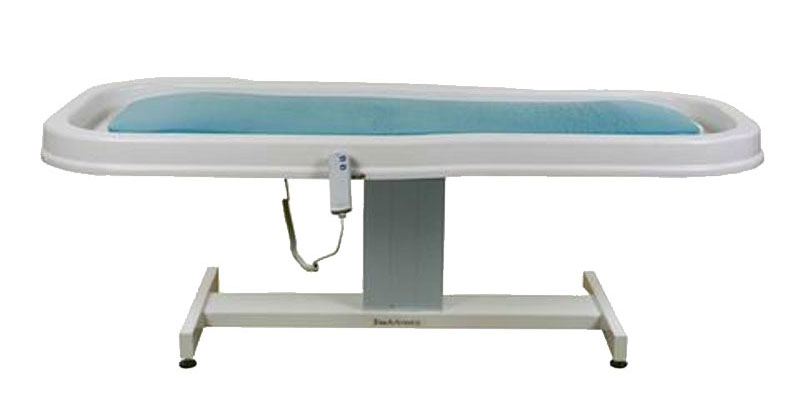

The Hi Lo Battery Acrylic Wet Table is a motorized, wet table with a seamless, molded-acrylic top, perfect for hydrotherapy treatments. The table is contoured with a wider torso section to keep clients comfortable and allow easier access for therapists. A generous trough-and-drain-system surrounds the work surface and keeps wash-off away from the client. Operated by hand control, the Hi Lo Acrylic Wet Table comes with battery, charger and removable Closed-Cell Foam Pad.
TOP:
Top design Acrylic shell with built-in channel to direct water to 1.5" drain opening at the foot end. Leveling feet can be adjusted to tilt foot end slightly lower. Comes w/ 41" of 1.5" flexible drain hose to direct water into floor drain (recommended) or bucket.
Contoured width tapers from torso to leg area.
Frame 3/4" plywood frame sealed with exterior-grade paint Pad 1.25" removable, closed-cell foam pad, vinyl coated, teal. Main lift mechanism 24v 4.5 A/h battery powers a linear actuator within the lifting column through a 24v, 8.50. A max control box mounted to the underside of the top. Controls 2-button hand control.
BASE & FRAME:
Carbon steel base Sleek, contemporary design White powder-coat finish. Anodized aluminum center pedestal. Leg recess 16.5". Height range - standard 24" - 32". Capacity Lifting capacity 375 lbs. /static weight capacity 800 lbs.
| Table Weight: | 250 lbs |
| Shipping Weight: | 300 lbs |
| TOP SIZE DIMENSIONS | |
| Width (torso): | 36" |
| Tapers (to legs): | 32" |
| Length (max size): | 83" the lower edge of top |
| WORKING AREA SIZE | |
| Width (torso): | 29" |
| Tapers (to legs): | 25" |
| Length: | 76" |
